Matrix Formulation of Bezier Curves

... Or why I thought you might be able to use texture matrices to generate vertices from a Bezier patch control point set. ..Or, why I now think that you can't do that, but why it would be a really good feature to have in DirectX 8, implemented as part of the VertexBuffer interface.


What info can we and what can't we store in the control points ??

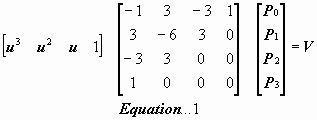

This means that you substitute the paramater value into the row vector u on the left thus for example at point u=0.3 on the bezier curve, we use;

and then go about pre-multiplying this through the matrix and then post-multiplying the resulting matrix with 1 set of components from the control point vector, P.

This means the if there are 4 control points P0 through P3 then you need to do 3 passes for this calculation. A first pass where the values P0 through P3 are substituted with all the X components of each control point, then the Y’s and then the Z’s.



When using texture matrices in DX7, usually the vertex is given texture components for example tu, tv, tw which might be duplicates of the vertex normal or its position in viewspace coordinates. The result is what is used to lookup values in a typically 2d bitmap;

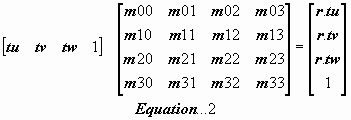

So we would have to jiggle our eqtn1 around to fit this Equation2 format.

We can re-arrange eq1 so that the transpose of the P col vector is pre-multiplied with the transpose of the matrix result of the pre-combination of the row vector U and the basis matrix M.

In symbols;

Control Points.....

We can store only things which contail spacial data or data that maps to spacial data. In other words, we can only store information whose components are completely independent of each other. This means that angular displacements cannot be stored in the control points, as the interpolation between them would not work as desired.


Keys to diagrams

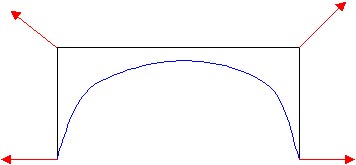

Diagram 1

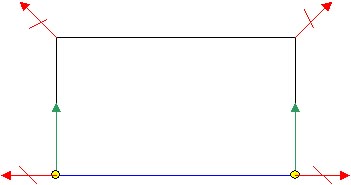

Diagram 1 shows; For a start, how would you calculate the normals in Red ?? They are defined as the unit vector that is orthogonal to a plane, but the bezier is a curve, and the plane that the sides of the control net lie in is not orthogonal to the curve at any point. Imagine what would happen if we sampled the curve at the lowest resoultion possible. We get this;

The Green arrows show the correct normal at the vertices (in yellow) and the Red arrows at the start and the end indicate what direction the normals would be pointing (incorrectly) if they were merely interpolated from stored normals in the control points, along with the position of the vertices.
This clearly indicates that the normals for the polygons generated must be calculated dynamically in a way that doesn't rely on stored data. I suggest taking the cross product of the edges of the generated polygons, but you can also use the curve's first order derivative at the sampled points and find the normal to that tangent.
